Whether you’re running AI, public cloud computing, private cloud storage, a high frequency trading operation, or an on-premises data center, ICEraQ liquid immersion cooling systems from GRC can help you attain unprecedented cost, performance and space efficiencies, while achieving your organizational sustainability objectives at the same time.
The minimal site requirements and modular design of ICEraQ server cooling systems significantly reduce the expense of building, running, and expanding data centers. With options ranging from our all-in-one, compact ICEraQ Micro to the elegant, space-efficient ICEraQ SX, and our super agile ICEraQ FLEX — the ICEraQ line can support densities from 45 kW with 32°C (89.6°F) water, all the way up to a whopping 368 kW with 13°C (55.4°F) water1 — we’ve got your data center cooling needs covered.

  • Reduce carbon footprint with:
    • Up to 90% lower cooling energy consumption
    • 11% lower server power draw (on average)
  • Attain a pPUE of <1.03
  • Lower upfront greenfield deployment costs up to 30%
  • Systems available to cool up to 368 kW with 13 °C (55.4 °F) water1
  • Enables high-density data center layouts
  • Deployable in harsh environments
  • Fast deployment: typically within 3 months
  • Scale as you grow

Whether You’re Diving into Hybrid Cloud Computing or Updating Your On-Premises Data Center Server, ICEraQ Liquid Immersion Cooling Systems Are for You

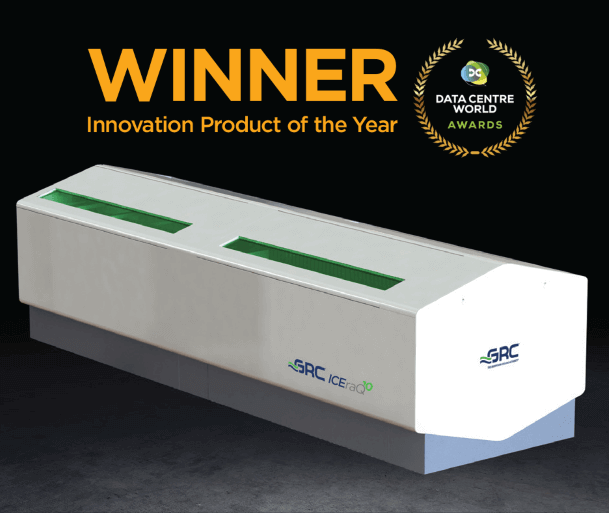

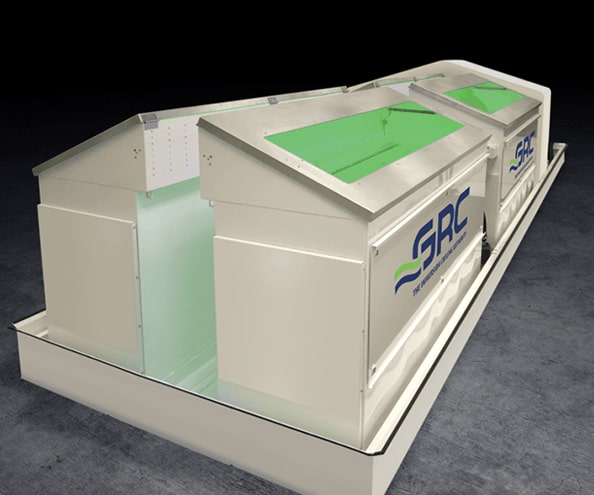

Integrated modules with racks, CDU, internal plumbing, and sensors makes the SX fast and easy to deploy in virtually any data center.

  • CDU supports up to 368 kW of IT load1
  • Available configurations
    • Quad: Four 42U racks, one CDU

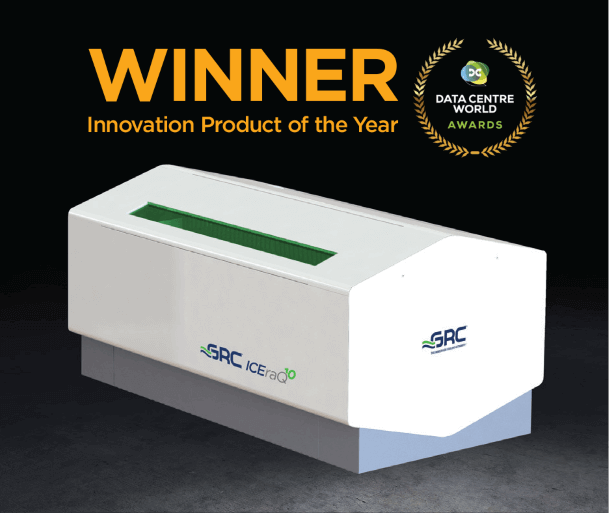

    • Duo: Two 42U racks, one CDU
  • Each rack includes an additional 8U of dry space for any air-cooled equipment such as network switches
  • Integrated cable management and PDU pockets
  • Built-in secondary containment
  • Compatible with space-efficient ICEraQ Underfloor CDU

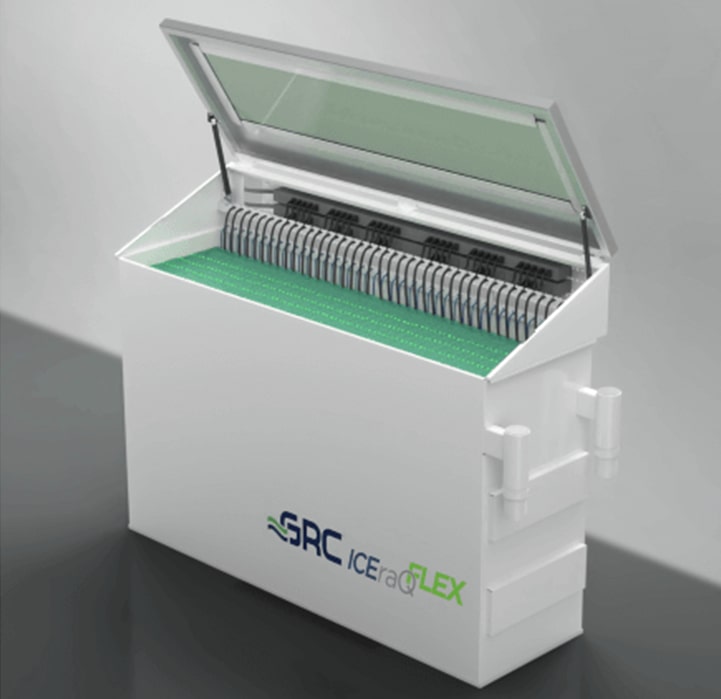

Freestanding racks powered by the SX CDU, deliver the same groundbreaking performance and efficiency while giving you the ability to deploy at sites where obstacles and other site challenges require flexible layouts and pipe routing approaches.

  • CDU supports up to 368 kW of IT load1
  • Available configurations
    • Quad: Four 42U racks, one CDU
    • Duo: Two 42U racks, one CDU
    • One: One 42U rack, one CDU
  • Each rack includes 3x1U of dry space for air-cooled equipment such as network switches
  • Dedicated PDU mounting pockets for easy cable management
  • Flexible CDU to rack placement
  • Compatible with space-efficient ICEraQ Underfloor CDU

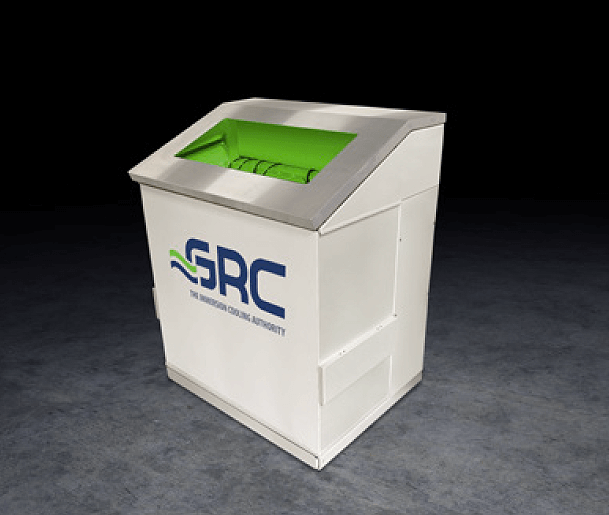

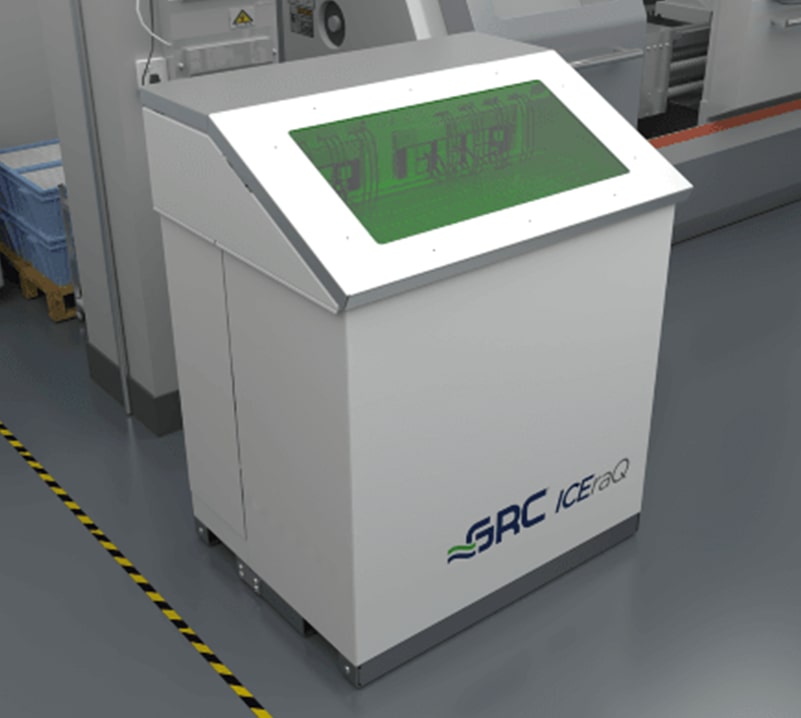

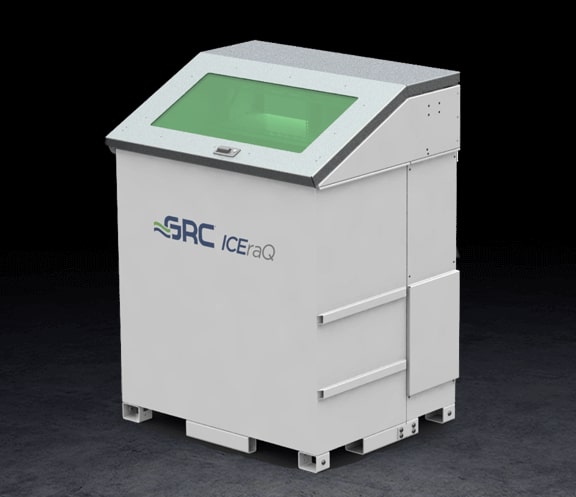

Self-contained, immersion cooled rack designed to be easy to get up and running — virtually anywhere. All you need is power, water service, and a level floor.

  • CDU supports up to 45 kW of IT load w/ chiller-free water at 32 °C (90 °F) or 90 kW w/ chilled water at 13 °C (55 °F)1
  • One 24U immersion-cooled rack w/integrated CDU
  • Includes 8U of dry space for air-cooled equipment and PDUs

1Rated to limit maximum coolant temperature near 50 °C (122 °F). Actual usable cooling capacity will depend on the hardware/configurations used. Thermal thresholds of individual components may limit usable capacity. Alternatively, higher permissible maximum coolant temperatures may allow higher cooling capacities.

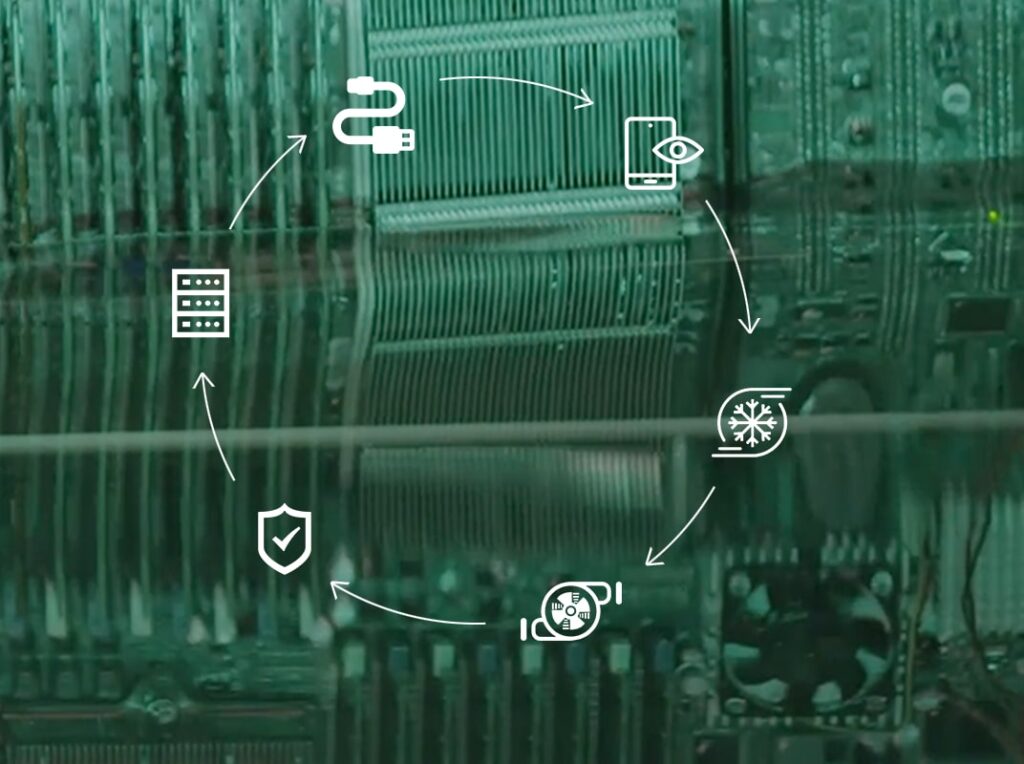

ICEraQ Liquid Immersion Cooling Systems Include:

  • Rack(s) filled with our eco-friendly, high-performance, synthetic ElectroSafe® liquid immersion coolants
  • Coolant Distribution Unit (CDU)
  • Cloud-based and local monitoring and reporting capabilities, with configurable email alerts
  • 2N redundant pumps and control systems
  • Integrated containment with SX2

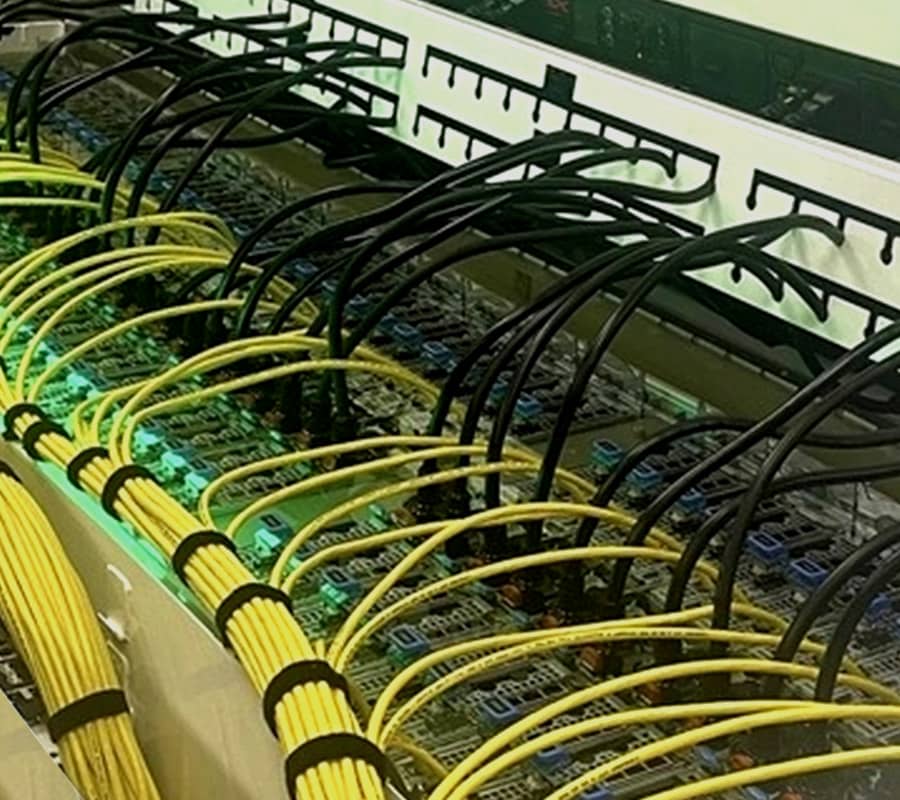

  • Integrated cable management

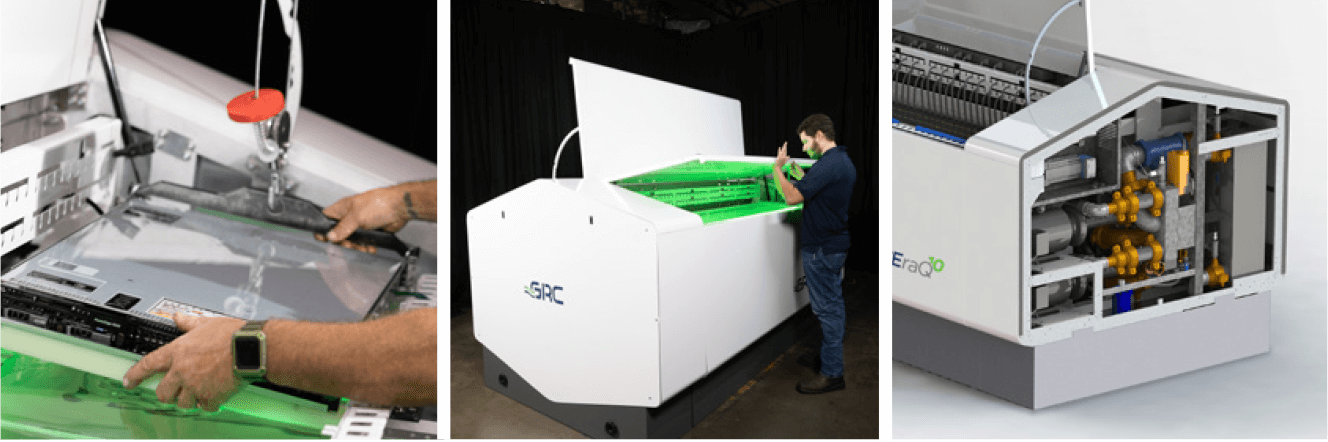

  • Rack-mounted service rails for easy server maintenance
  • One-year limited warranty with customized support options available

2Multiple containment options available for Micro and Flex
